JIC Fittings
SKU: 0901-04-07
Connections according to the Society of Automotive Engineers (SAE) standard with inch threads and a 37° sealing cone angle. The JIC male fitting has a cylindrical thread and a 37° external cone.

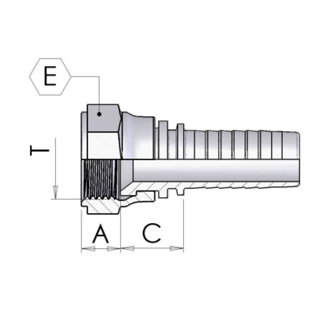

The JIC female fitting has a union nut with a cylindrical thread and a 37° internal cone.
Description
JIC Thread Identification Table:
NOMINAL HOSE SIZEHOSE INNER DIAMETERJIC THREADNUT INNER DIAMETERMALE FITTING OUTER DIAMETERdashinin (TPI)mmmm-21/8″5/6″ (24)6,97,8-33/16″3/8″ (24)8,59,4-41/4″7/16″ (20)9,911,2-55/16″1/2″ (20)11,512,6-63/8″9/16″ (18)12,914,1-81/2″3/4″ (16)17,518,9-105/8″7/8″ (14)20,522,1-123/4″1.1/16″ (12)24,926,9-147/8″1.3/16″ (12)28,130,0-161″1.5/16″ (12)31,333,1-201.1/4″1.5/8″ (12)39,241,1-241.1/2″1.7/8″ (12)45,647,4-322″2.1/2″ (12)61,463,3
